MightySat™ Rx Fingertip Pulse Oximeter by Masimo

Masimo SET^® – The Choice of Leading Hospitals Worldwide

• Masimo SET^® overcomes the challenges of low perfusion and motion artifact that limit conventional pulse oximetry
• Masimo SET^® pulse oximetry helps clinicians monitor more than 100 million patients a year¹

Respiration Rate from the Pleth (RRp^®)

• RRp may be used to measure respiration rate in the clinic, during emergency medical services, and at home.
• RRp provides a wide measurement range of 4 to 70 breaths per minute

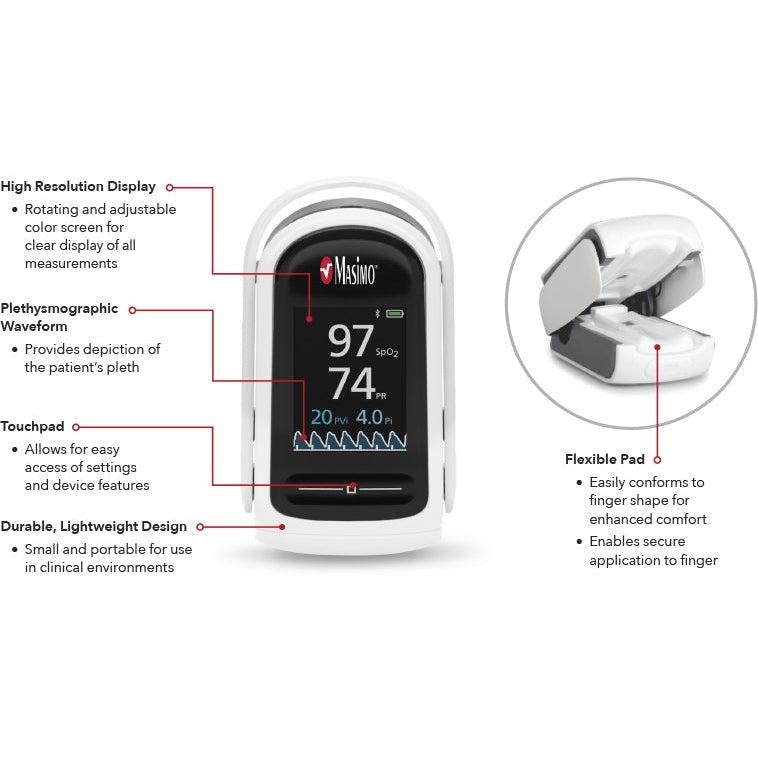

Unique Parameters and Indicators

Signal IQ^® (SIQ)

Located under the plethysmographic waveform. The height of the vertical line provides an assessment of the confidence in the SpO₂ value displayed.

Plethysmographic (Pleth) Waveform

Real-time graphical representation of changes in volume of arterial blood with each pulse.

Perfusion Index (Pi)

The ratio of the pulsatile blood flow to the non-pulsatile blood in peripheral tissue used to measure peripheral perfusion.

Pleth Variability Index (PVi)

A measure of the dynamic changes in the perfusion index (Pi) that occur during the respiratory cycle.

Respiration Rate from the Pleth (RRp)

A measure of respiration rate based on changes in the plethysmographic waveform. The unit of measure is respiration per minute (RPM).
