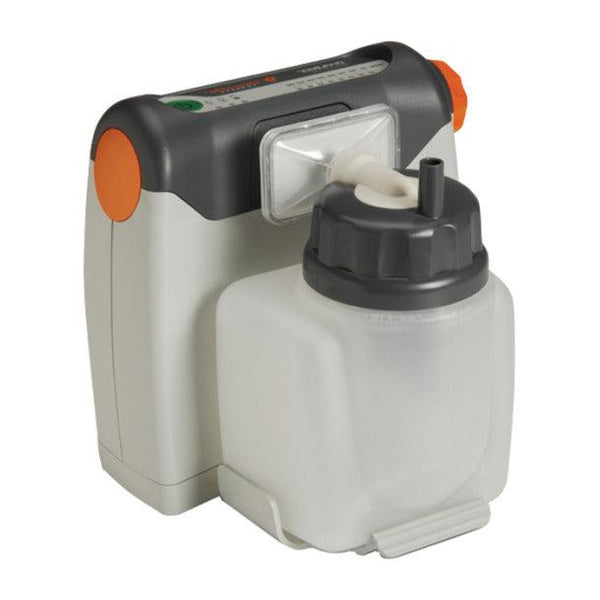

Vacu-Aide Compact Suction Unit with Suction Unit, 725 cc reusable bottle, tubing, elbow and AC & DC power cords
• The Vacu-Aide Compact is the smallest and strongest suction unit of its kind, while featuring a convenient carrying bag
that provides discreet suction on the go (Figure A)

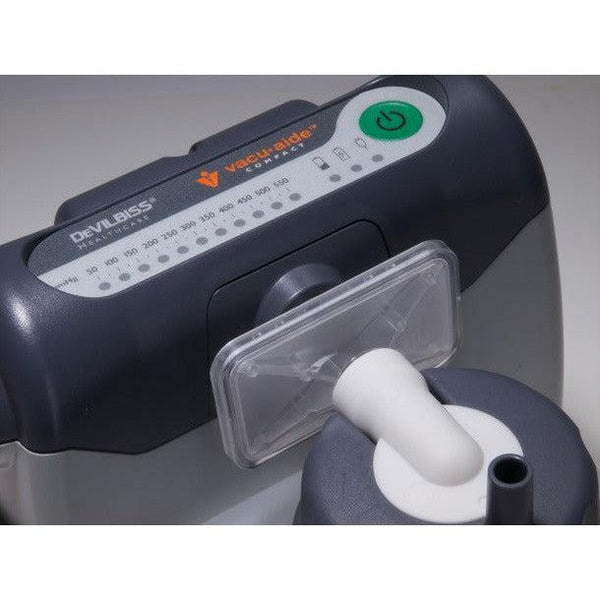

• Vacuum adjustment allows for 50-500 mm Hg +/- 10% and a free flow of 27 liters/minute (Figure B-C)
• Meets American Association for Respiratory Care (AARC) guidelines for neonatal, infant, child and adult homecare
suctioning
• Enhanced battery life for up to one-hour operation
• Meets ISO10079-1:1999 high vacuum, high flow classification
• Travel-friendly design meets RTCA/DO-160E Aircraft Standard for Environmental Conditions and Test Procedures for
Airborne Equipment (won't interfere with a plane's navigation system)
PRODUCTS Description
7310PR-D Vacu-Aide Compact w/ Reusable Canister
SPECIFICATIONS Description
Weight Capacity 3.37 lbs with battery
Battery Warranty Limited 6 Months
Dimensions 7.25" (H) x 7.25" (W) x 6.75" (D)
Electrical Requirements 100-240 VAC, 50/60 Hz, 0.75 A max.
Embedded Staff Control (optional) 12 V DC, 33 W max.
Flow Rate 27 lpm free flow, unrestricted
Power Input 33 watts maximum
Wall Guard 50-500 mm Hg
