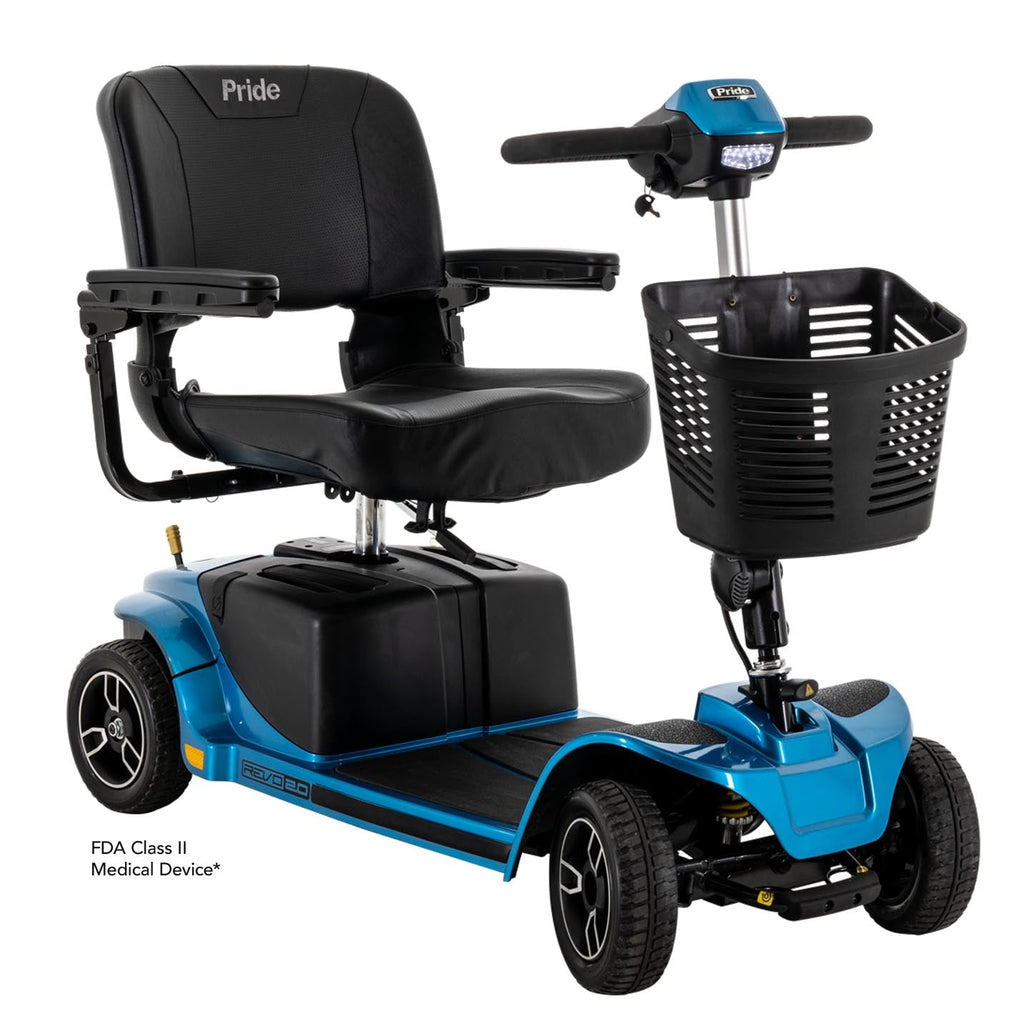

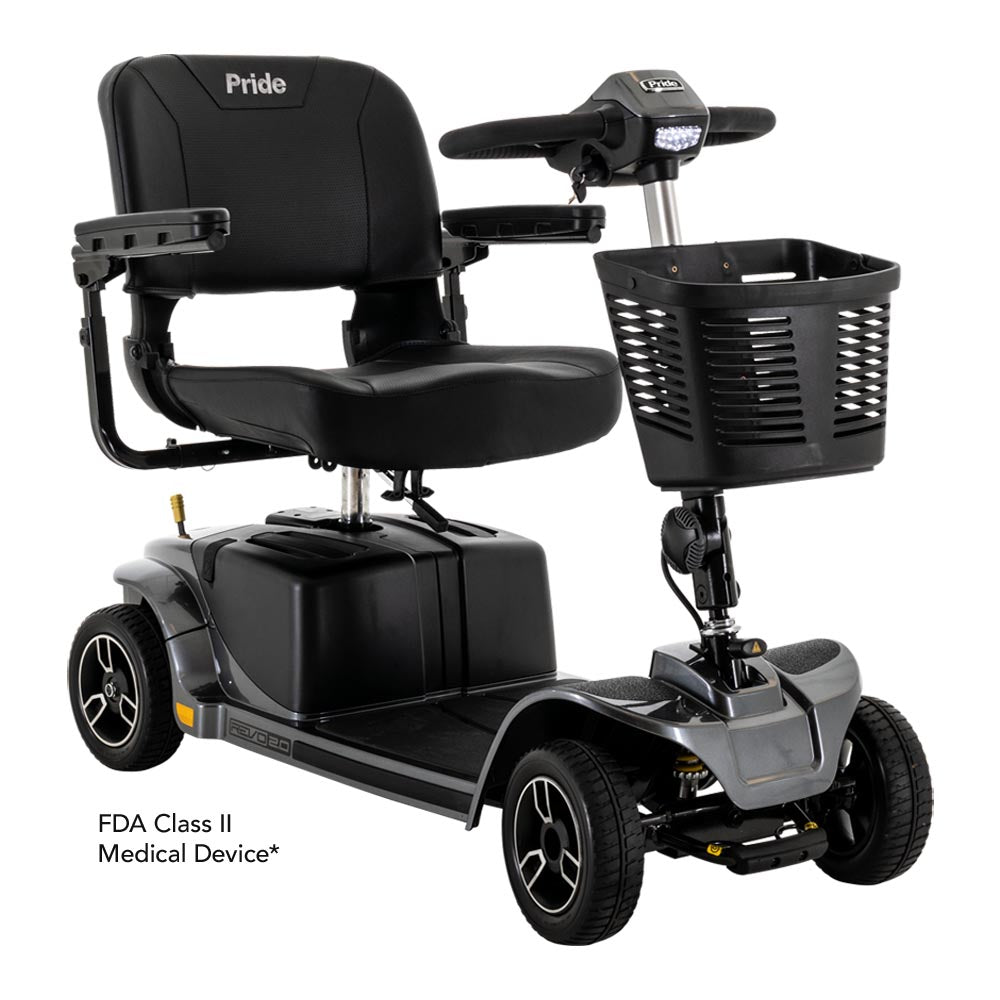

Revo 2.0 , 4-Wheel Scooter
The Revo® 2.0 is a true heavyweight among 4-wheel power mobility scooters. It commands the path ahead of you while dominating many different types of terrain, such as grass, concrete, blacktop, rock, and gravel. The new-generation Revo® 2.0 4-wheel power mobility scooter is a compact powerhouse that takes you from trailblazing excursions to a feather-touch five-piece breakdown for convenient portability. It’s easily transported into most vehicles or stored. This gem of a power mobility scooter is packed with features such as Comfort-Trac Suspension (CTS), providing a smooth and comfortable ride; under seat storage that is just the right size for your keys and smart phone; a front basket for small grocery or pharmacy items; and a 400-lb. weight capacity and speeds up to 5 mph.
Revo® 2.0 4-Wheel Features:
- 400 lbs. weight capacity
- Up to 5 mph maximum speed
- 52" turning radius
- 17.8 miles per charge at 200 lbs., 12.4 miles per charge at 400 lbs.
- Ergonomic delta tiller
- LED headlight
- Easy-to-grip tiller adjustment knob
- Comfort-Trac front and rear suspension
- Durable and stylish rear bumper
- Easily accessible tie down points (for transport of unoccupied scooter)
- Easily charge the batteries on or off the unit
- Pride’s exclusive black, flat-free, non-scuffing tires
- Seat designed for extreme comfort
- Standard front basket
- Standard under seat storage
- Ultra heavy-duty drivetrain with 70 amp controller
- User-friendly console
- USB mobile device charging port
Includes standard options:
- Two U-1 AGM batteries
- 3.5-AMP Off-board charger
- Front Basket
- Under seat storage
- Foldable molded plastic seat (20"W x 18"D)
- LED Headlight
Revo™ 2.0 4-Wheel Specifications:
| Model | Revo 2.0 4-Wheel |
| Weight Capacity | 375 lbs. |
| Front Tire | 3"x9" |
| Rear Tires | 3"x9" |
| Maximum Speed | Up to 5 mph |
| Ground Clearance | 3.5" at mid-frame |
| Turning Radius | 52" |
| Length/Width | 47"/20.75" |
| Seating | 20"w/18"d |
| Seat-to-Ground | 21-23.5" |
| Weight (w/o Batteries)3 | 132 lbs. |
| Seat-to-Deck | 15"-18" |
| Battery Weight4 | 25 lbs. each |
| Battery Requirements | (2) U1 Batteries |
| Per Charge Range1,2 (Max.) |
Up to 13 miles |
| Battery Charger | 3.5 amp |
| Suspension | Front and rear |
| Weight of Heaviest Piece3,5 | 57 lbs. (front section) |
| Medicare Code Coverage | K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria |
| Warranty | Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain |
|
Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. |
|
